Giới thiệu về van bi 546 GF

Ball Valve 546 Pro – GF

Mô tả van bi 546 Gf

Size Range: ⅜” – 4″

Pressure Rating: PN16 (up to 232 PSI); for PVC, CPVC and PVDF Cement and Fusion. PN10 (up to 150 PSI); for PVC, CPVC and PVDF, Threaded NPT or Flanged. PN10 (up to 150 PSI); for PP-H and ABS

Joining Technology: Solvent Cement Socket, Fusion Socket, Fusion Spigot, Threaded NPT, Flanged

Standard Ratings: ASTM, ANSI, NSF 61, ISO 9393

Materials: Polyvinyl Chloride (PVC), Chlorinated Polyvinyl Chloride (CPVC), Acrylonitrile Butadiene Styrene (ABS), Polypropylene (PP-H), Polyvinylidene Fluoride (PVDF)

Seal: O-Rings: EPDM and FPM, others on request, Ball Seal: PTFE

Description

The Type 546 Pro is the flagship valve of Georg Fischer Piping Systems and offers a broad range of material and accessory options to suit most industrial ball valve applications.

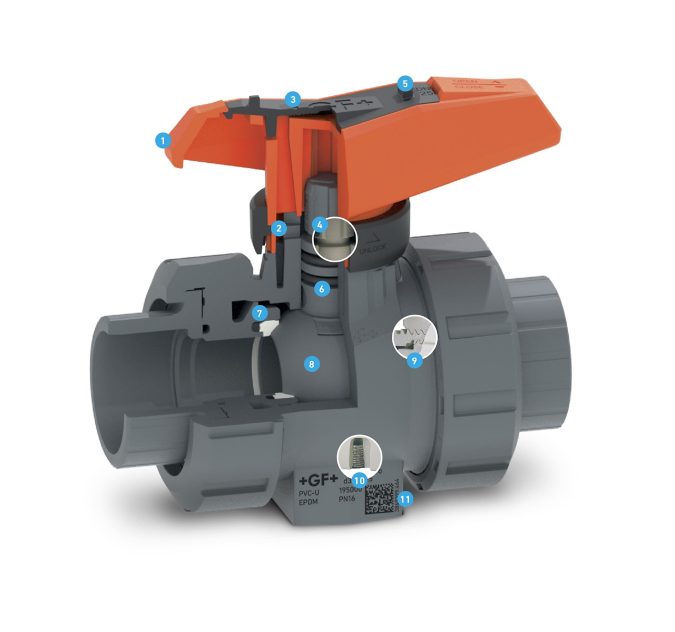

The Type 546 Pro utilizes standard industrial thermoplastic ball valve features such as design stem break point and a reverse threaded seat carrier while incorporating new features such as a trackable laser engraved data matrix and a unique lockable handle design.

Ứng dụng van bi 546 GF

• Chemical Process Industry
• Life Sciences
• Microelectronics
• Measurement and Control
• Water Treatment
• Marine
• Food and Beverage
